Operating Depth
Speed

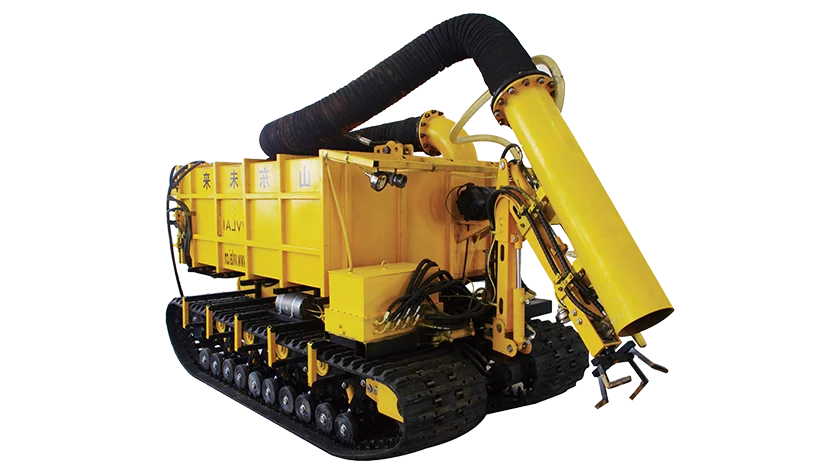

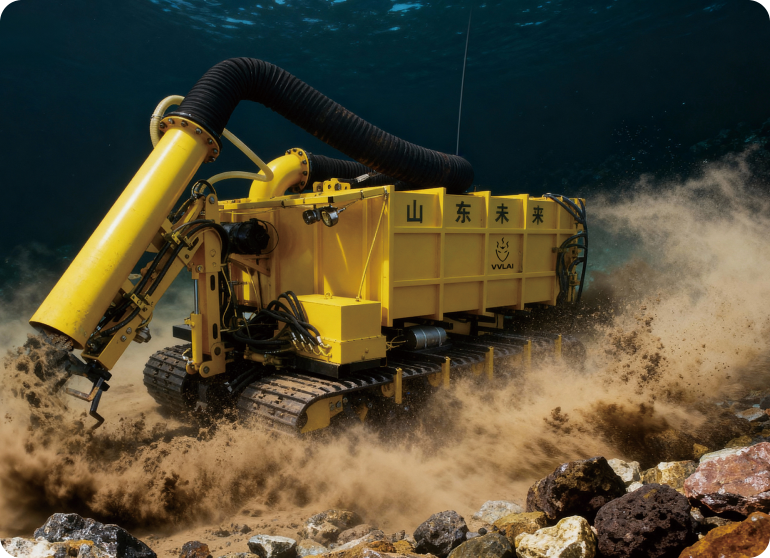

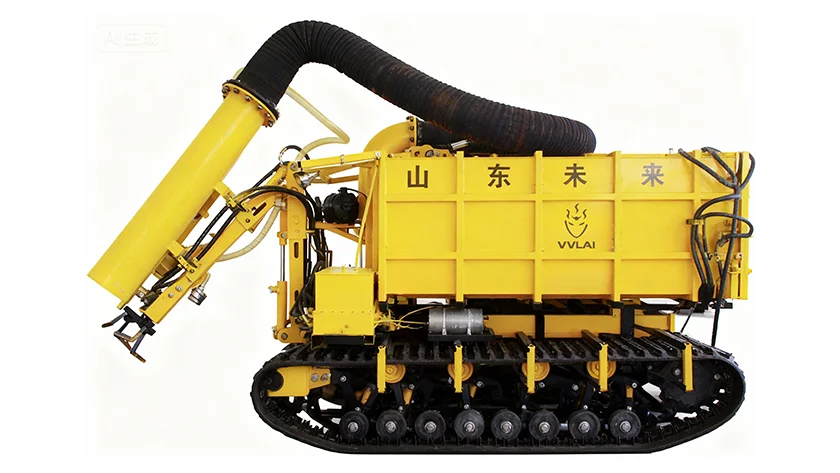

The VLD600 deep sea mining robot is a high-performance device designed for deep-sea exploration, mining, surveying, and harvesting tasks. Its hydraulic drive system and dual-track design ensure stable operation in complex seabed environments, adapting to various terrains. Equipped with an HD underwater camera and LED spotlights, it provides clear operational visuals even in low-visibility environments, delivering precise feedback to operators.
Combining intelligent technology, robust construction, and mission-ready capabilities to meet the challenges of complex subsea operations.
Suitable For Underwater Mining Sites
Operating depth range 600–3000 msw, capable of maintaining stability using its own weight
High Conveying Efficiency
Large-diameter design with a dual-pump configuration to enhance suction efficiency for slurry and other materials
Robotic Arm Operation
Equipped with a 2-axis hydraulic manipulator, offering a wide operational radius to perform complex underwater operations
Diverse Functional Expansion
Supports optional 360° rotating agitator arm and 60mm-diameter jet pump to meet diverse mining site requirements
Designed to perform a wide range of underwater tasks, delivering the versatility, precision, and reliability required for complex subsea operations.
Purpose-built for deep-sea resource development, the VLD600 combines powerful mining capabilities with efficient material collection performance.
Engineered for reliable performance in complex subsea environments, the VLD600 delivers precise control and operational flexibility.
| Dimensions (L*W*H) | 6000 × 1950 × 2500 mm | ||||
| Weight | 5t | ||||
| Depth | 600-3000 msw | ||||
| Speed | 5-26 m/min | ||||
| Suction Filter Pump | 250mm-diameter submersible suction pump × 2 | ||||
| Robotic Arm | 2-axis hydraulic manipulator, reach 2500mm, lifting capacity 500kg | ||||
| Optional Tools | 360° rotating agitator arm | ||||
| 60 mm bore jet pump | |||||
